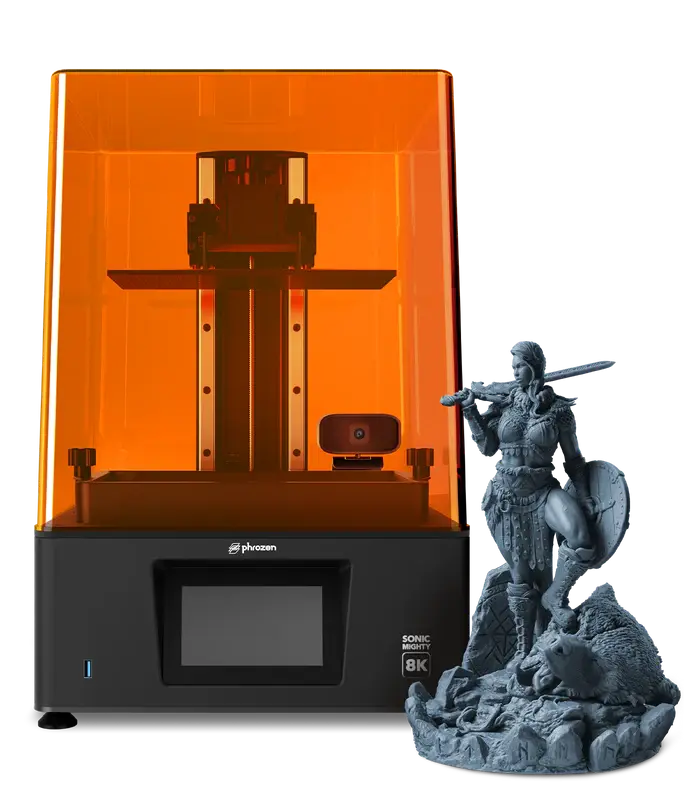

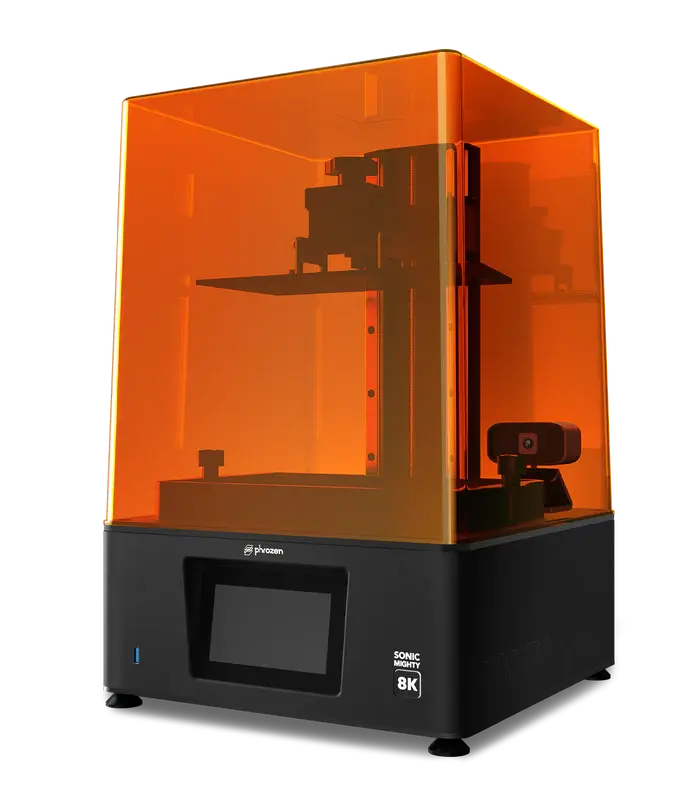

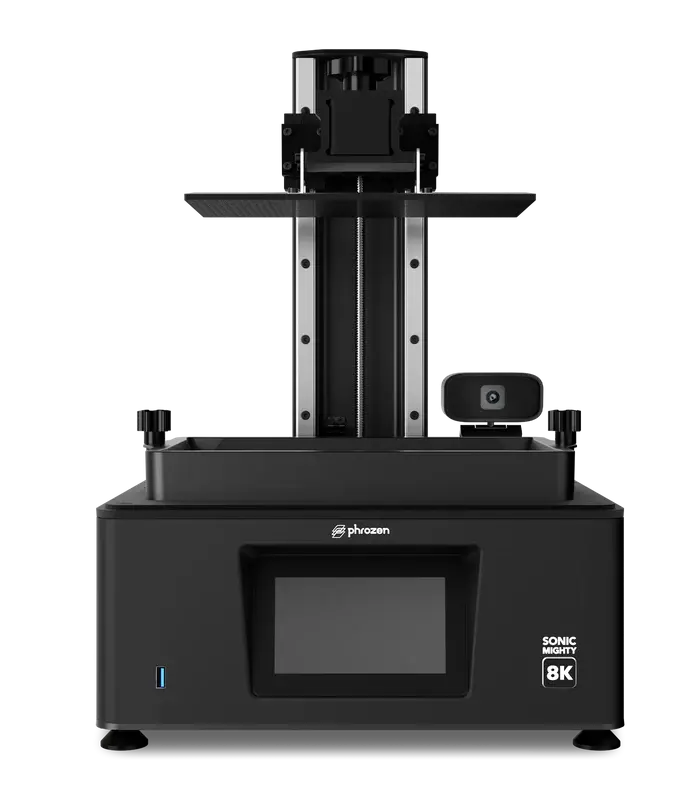

Phrozen Sonic Mighty 8K 3D Printer LCD

MSLA (Masked Stereolithography) 3D printers work by using an LCD screen to block light at specific points and allow UV light to pass through certain areas, causing the resin to harden at those points, forming various shapes from the LCD screen.



Key Features:

8K Monochrome screen with a maximum resolution of 28 µm. The Sonic Mighty 8K is currently the most detailed among LCD screens. With a 9.3” LCD screen and a print size of 218 x 123 x 235 mm, it is ideal for small to medium-sized prints. It also offers easier operation through USB, Ethernet, and Wi-Fi.



Benefits

  • Print Big and More in 8K Resolution: Printing big and more models doesn’t mean you have to sacrifice the details. Sonic Mighty 8K’s incredible 28㎛ resolution enables everyone to create crisp and sharp prints effortlessly.
  • 10” X 23.5cm, Maximized Productivity : Designed with mighty specs! The unit’s 10” LCD paired with 23.5cm dual linear rails will seriously boost your work efficiency.
  • High Productivity, Streamlined Design: Despite its powerful specs, the Sonic Mighty 8K has a footprint similar to other regular compact printers, and is easy to store virtually anywhere. This frees up room for any other equipment you may need in your workspace.
  • Enhanced Success Rate & LCD Lifetime: Sonic Mighty 8K also comes with a Frosted Laser Cut Building Plate that allows models to attach firmly onto the building plate. The Mono-LCD have a long lifespan and are more durable.
  • Extra Effort to Help You Print Better: Linear Projection LED Module provides consistent UV projection that cures the resin evenly. Sonic Mighty 8K also comes with Solid Dual Linear Rails and a Thick T-Plate to reduce wobbling and annoying layer lines.


Specs
  • System: Phrozen OS
  • Operation: 5″ in Large Touch Panel
  • Slicer Software: CHITUBOX V1.9.4
  • Connectivity: USB | Ethernet | Wi-Fi
  • Storage: Built-in Memory
  • Design: Technology Resin 3D Printer – LCD Type
  • Light Source: Linear ProjectionLED Module
  • XY Resolution: 28 µm
  • Layer Thickness: 0.01-0.30 mm
  • Maximum Printing Speed: 70 mm/hr
  • Power Requirement: DC 24V;5A
  • System Power: 120W
  • Printer Size: 33.7 x 33.7 x 51.6 cm
  • Print Volume:21.8 x 12.3 x 23.5 cm
  • Printer Weight: 14.3 kg
